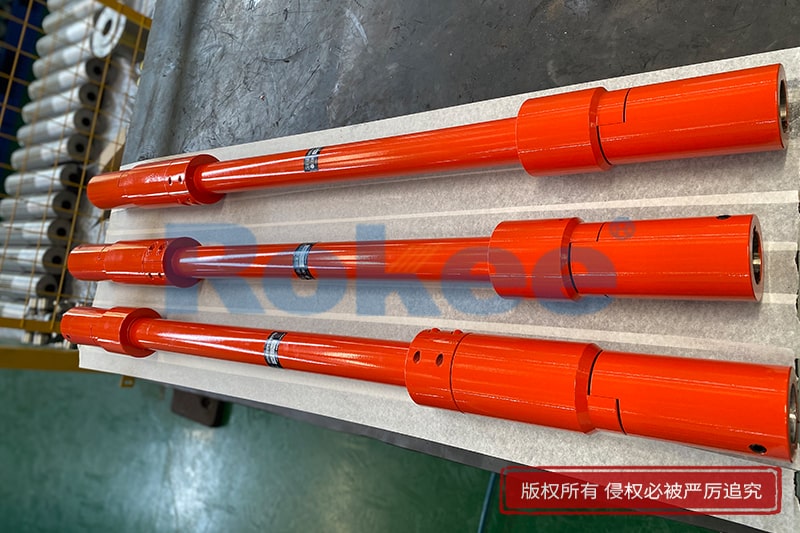

SWZ Large Universal Shaft

The SWZ large universal shaft stands as a core heavy-duty power transmission component specially engineered for rigorous industrial operating conditions, serving as a critical connecting part for shaft systems in various heavy machinery and equipment. Differing from ordinary universal shafts, this series features an integral bearing seat structure and integrated forging molding design, which fundamentally optimizes structural stability and load-bearing performance. It is uniquely capable of transmitting stable and efficient torque while compensating for large axis deflection angles and axial displacement generated during equipment operation, effectively resolving power transmission obstacles caused by installation deviations, equipment vibration and foundation deformation. Widely adaptable to low and medium-speed heavy-load working scenarios, it boasts outstanding durability, impact resistance and operational stability. With refined mechanical structure design and optimized material processing technology, it reduces transmission energy consumption and failure rates, becoming a reliable transmission solution for heavy industrial equipment and laying a solid foundation for continuous and stable operation of mechanical systems.

The core structural design of the SWZ large universal shaft focuses on integral molding and structural integration, which distinguishes it from traditional split-type universal shaft products and endows it with superior mechanical performance. Adopting an integral forging fork head structure, it completely abandons the traditional bolt connection mode that easily forms structural weak points. This integrated design eliminates the risk of loose connections and structural fracture under strong impact and heavy load, greatly enhancing the overall rigidity and impact resistance of the equipment. Matching with the exclusive integral bearing seat structure, each component fits tightly and accurately, avoiding assembly gaps and position offset problems common in split structures. The cross shaft core component adopts precise carburizing and quenching processing technology, which optimizes surface hardness and internal toughness simultaneously, enabling the cross shaft to withstand long-term alternating torque and frequent impact loads without deformation or wear. The overall compact structural layout not only reduces the occupied installation space but also improves the structural symmetry of the universal shaft, ensuring more uniform force bearing during power transmission and laying a structural foundation for stable operation under complex working conditions.

The SWZ large universal shaft exhibits exceptional load-bearing and torque transmission capabilities, making it suitable for extreme heavy-duty industrial working environments that ordinary transmission components cannot adapt to. Benefiting from the optimized integral structure and high-strength material configuration, it maintains efficient and continuous torque output under long-term high-load operation, with stable transmission efficiency and no obvious power loss. Its unique structural design allows it to adapt to large-angle axis deflection and multi-directional displacement changes, achieving equiangular and synchronous rotation transmission between the driving shaft and driven shaft even when the shaft centerline is not completely coincident. In the working state of frequent load changes and instantaneous impact, the universal shaft can buffer and absorb partial mechanical vibration through its flexible transmission characteristics, avoiding rigid force transmission that causes equipment damage. Whether it is continuous operation under static heavy load or intermittent operation under dynamic impact load, it can maintain stable working performance, effectively solve the problem of insufficient transmission capacity of ordinary couplings in heavy machinery, and meet the long-term and high-intensity operation needs of industrial production equipment.

In terms of operational adaptability, the SWZ large universal shaft shows strong environmental tolerance and working condition compatibility, which can stably operate in various complex and harsh industrial scenarios. It is widely applied in core transmission links of metallurgical rolling equipment, heavy lifting machinery, mining transportation equipment, petroleum engineering machinery and large conveying equipment. In metallurgical production with high temperature, dust and continuous operation, its high-strength structural materials and optimized surface treatment process can resist high-temperature oxidation and abrasive wear, maintaining stable transmission performance for a long time. In mining and construction scenarios with severe equipment vibration and frequent position deviation, its excellent angle compensation and displacement adaptation capabilities can automatically adjust the transmission state according to real-time shaft position changes, avoiding transmission jamming and component wear failure. Additionally, it can adapt to low-speed heavy-duty conventional working conditions and intermittent variable-speed operation modes, with flexible working condition switching capability. It can effectively offset installation errors and foundation settlement displacement generated during equipment installation and long-term operation, ensuring the accuracy and stability of power transmission throughout the equipment service cycle.

The SWZ large universal shaft has prominent advantages in maintenance economy and service life, effectively reducing the comprehensive operation cost of industrial equipment. Its split bearing seat design realizes convenient disassembly and replacement of core components without disassembling the whole universal shaft from the equipment, greatly simplifying the maintenance process and shortening the equipment downtime and maintenance cycle. Compared with traditional universal shafts that require overall disassembly and assembly maintenance, this structural optimization reduces manual maintenance workload and improves maintenance efficiency significantly. The overall structure has fewer vulnerable parts, and the key load-bearing components are forged and heat-treated as a whole, with uniform internal stress and strong fatigue resistance, which avoids premature aging and failure caused by long-term alternating load. Under standardized daily operation, the service life of the SWZ large universal shaft is far longer than that of ordinary transmission components, reducing the frequency of component replacement and equipment overhaul. Its stable performance greatly reduces unexpected equipment shutdown failures caused by transmission component damage, improves the continuous operation rate of the production line, and creates considerable economic benefits for industrial production while lowering equipment operation and maintenance costs.

The dynamic operation performance of the SWZ large universal shaft is optimized through precise structural calibration and processing technology, realizing low vibration and low noise stable transmission. All finished products undergo strict dynamic balance calibration treatment before leaving the factory, which effectively eliminates the mass uneven distribution of components and assembly unbalance errors. This processing technology avoids excessive centrifugal force generated during high-speed rotation, suppresses mechanical vibration and resonance phenomena, and ensures smooth and stable operation of the universal shaft in the full working speed range. The matching precision between the cross shaft and the bearing assembly is strictly controlled within a high tolerance range, which reduces friction resistance during relative movement and avoids abnormal wear and noise caused by component friction. The integral rigid structure enhances the overall anti-vibration ability of the transmission system, can absorb and isolate the vibration generated by equipment operation, prevent vibration transmission between the driving and driven equipment, and protect the normal operation of other precision components of the equipment. Excellent dynamic performance not only improves the stability of the transmission system but also optimizes the on-site operating environment, meeting the high-standard operation requirements of modern industrial equipment.

The material selection and processing technology of the SWZ large universal shaft strictly follow heavy-duty industrial manufacturing standards, ensuring excellent comprehensive mechanical properties and structural reliability. The main body is made of high-quality high-strength alloy steel materials, which have high tensile strength, yield strength and impact toughness, and can resist mechanical damage such as deformation, fracture and abrasion under extreme load conditions. Key components such as cross shafts and bearings adopt professional carburizing, quenching and tempering composite heat treatment processes, which improve the surface hardness and wear resistance while retaining the internal toughness of the material, realizing the perfect combination of wear resistance and impact resistance. The surface of the product is treated with professional anti-corrosion and anti-oxidation processes, which can resist the erosion of moisture, dust and industrial corrosive media in the working environment and avoid component rust and performance degradation. The whole manufacturing process adopts precision forging and CNC finishing technology, with high component dimensional accuracy and good assembly consistency. Strict multi-process quality inspection is implemented from raw material incoming inspection to finished product delivery, ensuring that each universal shaft has stable and reliable quality performance and can adapt to long-term high-intensity industrial operation requirements.

With the continuous upgrading of modern heavy industry, the application value and development potential of SWZ large universal shafts are constantly highlighted, becoming an indispensable key component in the field of heavy machinery transmission. Modern industrial production puts forward higher requirements for equipment stability, energy saving and service life, and the SWZ large universal shaft perfectly fits the development trend of industrial equipment upgrading by virtue of its high load-bearing, high stability and low maintenance characteristics. Its flexible transmission performance and strong working condition adaptability can meet the diversified and personalized transmission needs of different heavy machinery, and can be compatible with the iterative upgraded industrial equipment systems. In the context of industrial energy conservation and efficiency improvement, its efficient transmission performance reduces mechanical energy loss in the power transmission process, helping enterprises reduce energy consumption and realize green production. In the future, with the continuous innovation of material technology and processing technology, the structural performance of SWZ large universal shafts will be further optimized, with stronger load-bearing capacity, longer service life and more intelligent adaptive adjustment performance, providing more reliable core support for the high-quality development of heavy industrial machinery manufacturing industry.
