Metal Diaphragm Coupling For Pumps

Metal diaphragm couplings have emerged as a core transmission component for modern pump systems, serving as a critical connecting unit between pump bodies and driving motors. Unlike traditional flexible couplings that rely on rubber or plastic deformation, this all-metal structural part realizes torque transmission and shaft deviation compensation through the elastic deformation of high-strength metal diaphragms, perfectly adapting to the high-speed, high-load and continuous operating characteristics of industrial pump equipment. In complex pumping scenarios including fluid transportation, industrial circulation and environmental protection water treatment, these couplings effectively solve common operational problems such as shaft misalignment, vibration interference and transmission efficiency attenuation. Featuring zero backlash, maintenance-free operation and excellent fatigue resistance, they greatly improve the operational stability and service life of pump units.

The working mechanism of metal diaphragm couplings for pumps is based on the reversible elastic deformation of metal materials, realizing dual core functions of stable torque transmission and automatic misalignment compensation without friction or lubrication assistance. During the operation of the pump system, the motor drives the driving shaft to rotate, and torque is uniformly transmitted to the driven shaft connected to the pump body through the stacked metal diaphragm groups. In actual assembly and long-term operation, it is impossible to maintain absolute coaxiality between the driving and driven shafts due to machining errors, installation deviations, equipment operation vibration and thermal deformation of components. The thin metal diaphragm structure can produce micro elastic deformation to adapt to three types of common shaft misalignment, including axial displacement, angular deflection and parallel offset. This flexible adjustment mode avoids rigid stress concentration at the shaft connection part, eliminates rigid friction and impact caused by misalignment, and ensures that the pump maintains consistent torque transmission efficiency during continuous operation. Meanwhile, the integral metal structure avoids material aging and deformation failure of non-metal couplings, providing stable power transmission support for long-cycle pump operation.

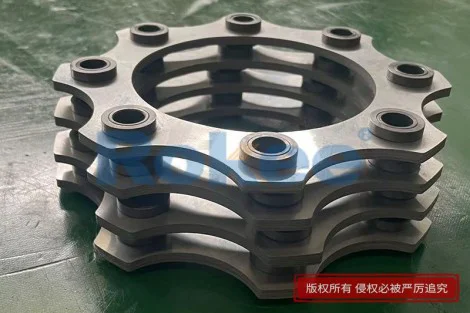

The unique structural design of metal diaphragm couplings endows them with irreplaceable application advantages in pump system matching, distinguishing them from conventional coupling products. The core transmission components adopt multi-layer thin metal diaphragm superposition structure, which is compact in overall size and light in weight, effectively reducing the overall assembly space of pump equipment and avoiding additional load on the shaft system. All-metal integrated processing eliminates loose parts and structural gaps, achieving complete zero-backlash torque transmission, which is crucial for precision pump equipment that requires accurate speed and torque control. Different from gear couplings and sleeve couplings that rely on sliding friction for adaptation, diaphragm couplings depend entirely on metal elastic deformation for adjustment, with no relative sliding between components. This structural feature fundamentally avoids wear debris generation and lubrication failure risks, enabling long-term maintenance-free operation. In addition, the symmetrical structural design ensures uniform stress distribution during high-speed rotation, effectively reducing rotational vibration and noise, and optimizing the overall operating environment of the pump unit.

Metal diaphragm couplings exhibit superior comprehensive performance in adapting to diverse pump operating conditions, making them suitable for harsh and continuous industrial working scenarios. In terms of rotational performance, the high-strength alloy diaphragm materials have excellent torsional rigidity, which can maintain stable transmission accuracy under high-speed and high-torque operating conditions, and will not produce torsional deformation or power loss that affects pump fluid delivery efficiency. The metal materials selected have outstanding fatigue resistance and structural stability, and can withstand frequent start-stop impacts and long-term cyclic rotation of pump equipment without fatigue cracking or structural failure. For variable working conditions such as temperature fluctuation and slight equipment displacement during pump operation, the elastic deformation range of the diaphragm can adapt to real-time changes of the shaft system, avoiding additional mechanical stress on the pump bearing and seal components. Moreover, the all-metal structure has good corrosion resistance and aging resistance, and can operate stably in humid, dusty and slightly corrosive industrial environments, avoiding performance degradation caused by environmental erosion and ensuring the long-term reliable operation of the pump transmission system.

In practical industrial pump applications, metal diaphragm couplings effectively improve the operational reliability and economic benefits of the entire equipment system. Most industrial pumps need to operate continuously for thousands of hours every year, and traditional couplings are prone to aging, wear and failure, requiring frequent shutdown inspection and replacement, which seriously affects production continuity. The maintenance-free characteristic of metal diaphragm couplings greatly reduces equipment downtime and manual maintenance costs, improving the continuous operation rate of pump units. The precise and stable torque transmission ensures that the pump’s flow rate and pressure output remain stable, avoiding fluid delivery fluctuations caused by transmission errors, which is of great significance for stabilizing industrial production processes. In high-precision metering pumps and process pumps used in chemical, pharmaceutical and water treatment industries, the zero-backlash and low-vibration performance of diaphragm couplings eliminates transmission interference, ensuring the accuracy and stability of fluid metering and delivery. Meanwhile, the good misalignment compensation capability reduces the assembly precision requirements of pump and motor equipment, lowering the difficulty and cost of equipment installation and debugging.

The installation and matching characteristics of metal diaphragm couplings are highly compatible with the assembly logic of modern pump systems, with strong adaptability and operability. The standardized structural design enables the couplings to be perfectly matched with various types of pump equipment, including centrifugal pumps, booster pumps, circulating pumps and metering pumps, covering most industrial fluid transmission scenarios. The split assembly structure simplifies the overall installation process, allowing operators to complete positioning, fixing and debugging operations without disassembling the pump and motor body, effectively improving installation efficiency. During the assembly process, the elastic adjustment performance of the diaphragm can tolerate reasonable installation errors, reducing the precision debugging pressure of shaft alignment. After installation, the coupling can automatically adapt to the slight displacement and deformation of the shaft system caused by equipment heating and load changes during pump operation, without repeated shutdown adjustment. In addition, the compact structural form does not occupy extra pipeline and equipment layout space, which is conducive to the integrated and compact design of modern pump station equipment and meets the space optimization needs of industrial production sites.

The daily operation and maintenance logic of metal diaphragm couplings for pumps is simple and efficient, which perfectly matches the long-term continuous operation mode of industrial pump equipment. Unlike rubber couplings that require regular inspection of aging degree and gear couplings that need periodic lubrication and oil replacement, metal diaphragm couplings have no wearing parts and no lubrication requirements, realizing full-cycle maintenance-free operation under normal working conditions. In daily equipment inspection, staff only need to observe the overall operating vibration and noise status of the pump unit to judge the working state of the coupling, without professional disassembly and detection. The high-strength metal diaphragm has strong anti-fatigue and anti-impact capabilities, and can resist minor load impacts and instantaneous speed fluctuations during pump operation without structural damage. When the pump equipment needs long-term shutdown and restart, the coupling structure will not produce deformation failure or performance attenuation due to static placement. This low-maintenance operation mode greatly reduces the daily management pressure of enterprise equipment and extends the comprehensive service cycle of pump transmission systems.

With the continuous upgrading of industrial pump equipment towards high speed, high precision and high intelligence, metal diaphragm couplings are showing broader application prospects and continuous optimization space. Modern industrial production puts forward higher requirements for the stability, efficiency and intelligence of fluid transmission equipment, which further promotes the iterative upgrading of diaphragm coupling structure and performance. New high-strength and corrosion-resistant alloy materials are continuously applied to diaphragm manufacturing, further improving the fatigue life and environmental adaptability of products. Structural optimization design is committed to realizing smaller volume, larger misalignment compensation range and higher torque transmission efficiency, adapting to the miniaturization and high-power development trend of new pump equipment. In intelligent pump system applications, the stable operating characteristics of diaphragm couplings provide reliable basic conditions for equipment operation data monitoring and fault early warning. As a key basic transmission component, metal diaphragm couplings will continue to empower the efficient and stable operation of industrial pump systems and become an indispensable core part of modern fluid transmission equipment.
