RLQF法兰式快装金属膜片联轴器

适用于鼓压风机,透平压缩机和其他转速较高的场合,转速可至35000rpm。

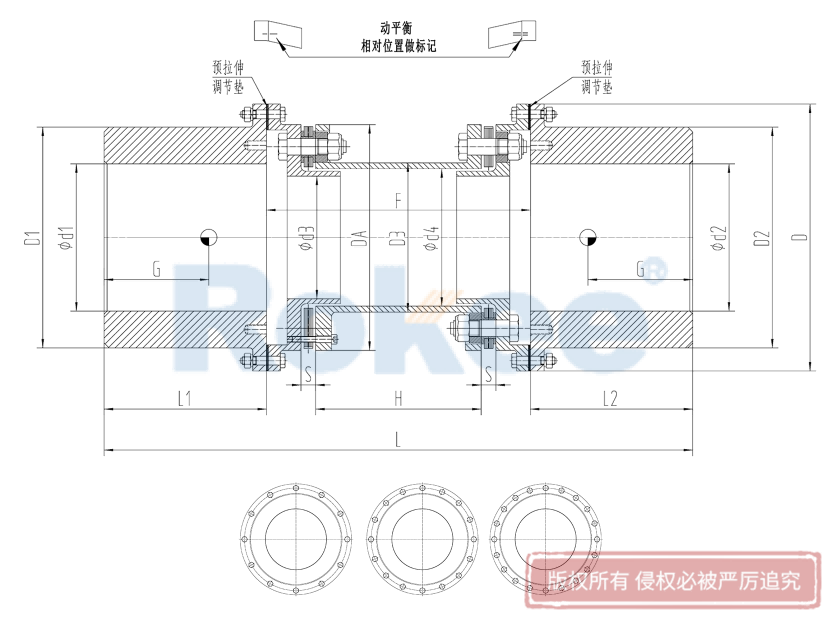

  • RLQF法兰式快装金属膜片联轴器
规格DDAD1/D2D3d1/d2max)d4L1/L2轴间距F标准/(min)L许用转速(max)公称转矩瞬时转矩(max)峰值转矩
(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)n max(r/min)T(N.m)Tmax(N.m)Tmax(N.m)
RLQF103-61241039062605665460/1202603800098025002000
RLQF125-614612510576705875460/12027235000150053004000
RLQF145-6168145127.585857590460/12029030000200065004800
RLQF158-61881581509410085105460/1303402750038001500010900
RLQF175-621017518010812099125460/1604002450065002500018500
RLQF205-6235205202.5127135117140460/1604302350098002750021100
RLQF235-6270235232.5151155140165460/19052521000135004350033800
RLQF255-6298255255164170150180460/19554518500195006500049600
RLQF280-6320280277.5182185167195460/20059016000265008535064100
RLQF300-6350300307.5202205182215460/21062014850320009150068700
RLQF320-6382320337.5219225200235460/250710135004320012800097000
RLQF370-6425370367.5230245196255500/2707801250070000185000142000
RLQF400-6455402405243270193290500/3058851100098000282000212000
RLQF435-6490435442.5295295264315500/30592510000125000315000237000
RLQF465-6540465442.5325295295345550/33010008500145000391500355000
RLQF540-6600540532.5352355328375550/33010707350200000525000396000
规格质点G角向偏差轴向偏差(max)S中间质量(米)中间转动惯量中间扭转刚度联轴器质量扭转刚度转动惯量拧紧力矩角向刚度轴向力
(mm)(±△º)(Max±△mm)(mm)10-3kg/mmJs10-6(Kg.m²/mm)Ct-106(Nm.mm/rad)(Kg)Ct-106(N.m/rad)Js10-6(Kg.m²/mm)F' (N.m)N.m/degN
RLQF103-652.410.35°0.9*293.83257.64758198.7985
RLQF125-661.4851*2125.35.0451.312.8151138200.61160
RLQF145-670.61*2148.821414319.5150318114.51040
RLQF158-680.021.25*216102020328217578221.11640
RLQF175-696.61.25*21711.53131442.54721298286.22490
RLQF205-6103.51.75*217155657156.547820315256.42950
RLQF235-6120.21.75*2212010510668989448315240.64270
RLQF255-61321.8*221231461489112.5150267145566.95020
RLQF280-6142.71.8*22230.12322361138151711545552.96700
RLQF300-6149.12*222333013089173.21562160.645485.96440
RLQF320-6164.32*227444904989247262225845616.68230
RLQF370-6185.52.25*23257.577178603374242466.745181812550
RLQF400-6207.23*23575.51129115094059109732945169117750
RLQF435-6212.53.25*23780150416140515.5154501001045194017380
RLQF485-6245.23.75*2401052570261836902038018490100217222460
RLQF540-6262.44*2421334290436829032335029500100202723260

规格DDAD1/D2D3d1/d2max)d4L1/L2轴间距F标准/(min)L许用转速(max)公称转矩瞬时转矩(max)峰值转矩
(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)n max(r/min)T(N.m)Tmax(N.m)Tmax(N.m)
RLQF158-81881581479410082105460/1303401220075002000015500
RLQF175-821017516810811597120460/1604001000098002920026300
RLQF205-8235207191135130123135460/2505209500112503937531400
RLQF235-8280240228152155138165460/2706008000275008250065800
RLQF255-8300258257164175149185460/3056757500315009450083500
RLQF300-8345302286198195184205460/30571565004250012750097700
RLQF345-8402346338234230217240500/250730550062000186000145000
RLQF370-8425372360248245228255500/270780520098000264500202000
RLQF400-8453402397257270232290500/3058854750135000364500302000
RLQF435-8490435426293290270310500/3059254400170000459000336000
RLQF465-8540465463327315300335550/33010003900215000580500505000
RLQF540-8600540515375350344370550/33010703500278000750600564000
RLQF610-8665610575420390385410600/38512053200400000105000812000
规格质点G角向偏差轴向偏差(max)S中间质量(米)中间转动惯量中间扭转刚度联轴器质量扭转刚度转动惯量拧紧力矩角向刚度轴向力
(mm)(±△º)(Max±△mm)(mm)10-3kg/mmJs10-6(Kg.m²/mm)Ct-106(Nm.mm/rad)(Kg)Ct-106(N.m/rad)Js10-6(Kg.m²/mm)F' (N.m)N.m/degN
RLQF158-887.80.25°0.6*21612202032935111089642660
RLQF175-894.50.9*217133131442.562022010152003870
RLQF205-8103.81.1*21719.1808115890443812.5849.63850
RLQF235-8121.51.1*22125.113213449817858652816657060
RLQF255-8133.41.4*221291781810125.5306995031.518798710
RLQF300-8151.51.7*222333013069174390915974514218500
RLQF345-8174.42*22442.560261332755365348463231110200
RLQF370-8187.42.1*22759833848533290434677100419417150
RLQF400-8207.22.2*23275.5112911509435.21230013500140931923550
RLQF435-8212.52.4*235801504161405541545018780180640124510
RLQF485-8245.22.6*2371052570261837422038030280224726529250
RLQF540-8262.42.75*2401334290436829562335047500280844130740
RLQF610-8302.13.4*242169687070033132537320813004001034042450

规格DDAD1/D2D3d1/d2max)d4L1/L2轴间距F标准/(min)L许用转速(max)公称转矩瞬时转矩(max)峰值转矩
(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)n max(r/min)T(N.m)Tmax(N.m)Tmax(N.m)
RLQF205-10235207191135130119135460/25052018500200005400040400
RLQF235-10280240228152155132165460/270600155003550011350085000
RLQF255-10300258257164175140185460/3056751450050000145000108000
RLQF300-10345302286198195176205460/3057151250063000165000126000
RLQF345-10402346338234230217240500/2507301100078500245000186000
RLQF370-10425372360248245228255500/27078010000124500348500260000
RLQF400-10453402397257270232290500/3058859500158500518000389+000
RLQF435-10490435426293290270310500/3059258700178000575000433000
RLQF485-10550485463327315300335550/33010007500245000860000649000
RLQF540-10600540515374350344370550/33010706850350000965000726000
RLQF610-10665610576410390386410600/3851205600055500014500001086000
规格质点G角向偏差轴向偏差(max)S中间质量(米)中间转动惯量中间扭转刚度联轴器质量扭转刚度转动惯量拧紧力矩角向刚度轴向力
(mm)(±△º)(Max±△mm)(mm)10-3kg/mmJs10-6(Kg.m²/mm)Ct-106(Nm.mm/rad)(Kg)Ct-106(N.m/rad)Js10-6(Kg.m²/mm)F' (N.m)N.m/degN
RLQF205-10116.40.2°0.8*22125100811581450380866825910
RLQF235-10121.50.85*22335175134495266087015116299350
RLQF255-10133.40.95*22345261134412839301440151408212710
RLQF300-10151.51.15*226484451810175.55405254045867412910
RLQF345-10174.41.4*231516023069278.57921599045776814000
RLQF370-10187.41.5*233598336133336114508050451448021290
RLQF400-10207.21.505*23575107784854451554012390453381026770
RLQF435-10212.52*23578.51510115095591995018850452187029530
RLQF485-10245.22.15*238104.5257016140748.52938530500452437035960
RLQF540-10262.42.3*24013342852618396039425479501002701041260
RLQF610-10302.12.8*246170-43682132859450815601003300057480
  • RLQF系列是RLQA系列的衍生设计产品,具有RLQA基本特点和性能,适用于各种中大型泵,各类鼓风机和透平压缩机组等。

  • 此型号产品采用法兰连接,可以包容更多的驱动和被动轴径,例如发电机组和电机驱动系统。

  • 特别适用于采用法兰连接的大型燃气轮机和蒸汽轮机组。

  • 设计有轴向安装垫片,可以很方便地调整轴向安装长度。

  • 轴套安装长度L1/L2为标准推荐长度,请尽量优先考量,若需特殊长度也可另行设计。

  • 孔径,轴套外径,轴头距离都可根据需要另行设定。

  • 为保证优异的性能,挠性膜片组不得擅自厂外分解装配。
